DesCool PR Series Adsorption Dehumidifiers

Dehumidifier Operation Diagram

The dehumidifier is designed with two airflows, which are moved by the rotational energy of the fan wheels. The airflow to be dehumidified passes through the adsorption section of the rotor, where the porous fiber structure of the silica gel absorbs moisture.
To implement the necessary cyclical process and remove previously absorbed moisture from the rotor, a regeneration line is used. In this process, the regeneration airflow is heated to high temperatures before passing through the rotor. This heat causes the moisture to be released from the rotor, which is then expelled outside.
Depending on the required parameters for the dehumidified air, the temperature of the air in the regeneration line can be adjusted.

Dehumidifier Equipment and Supply Package

The DesCool dehumidifiers are fully equipped with a built-in automatic system and all necessary components. The automation system is integrated inside the housing and includes all internal connections, providing easy access for maintenance. Key features include:

• Filter contamination sensors
• Fan airflow regulation
• Temperature and humidity sensors for both the serviced air and regeneration air
• Control system for regeneration air valve actuators
• Fire signal connection option
• Modbus data transmission protocol support

Standard Configuration of DesCool PR Adsorption Dehumidifier

• Galvanized steel housing (panels painted RAL7024 on the outer side)
• Dehumidified air fan with EC motor
• Regeneration air fan with EC motor
• Air filtration for dehumidified air, F5 filter class
• Air filtration for regeneration air, F5 filter class
• High-efficiency adsorption rotary dehumidifier (can be cleaned with water)
• Motor reducer with belt drive and tensioner
• Electric heater with the appropriate power
• Freely programmable controller
• Wintek 7” touch panel operator interface
• Heat-resistant seals
• Cooling line for the automation section
• Adjustable height legs
• Spare air filters (F5)

Sensors and Control Features

• Temperature and humidity sensors for the dehumidified air
• Temperature and humidity sensors for the regeneration air
• Temperature and humidity sensor for outdoor air
• Filter contamination differential pressure sensor for dehumidified air filter
• Filter contamination differential pressure sensor for regeneration air filter
• Fan operation sensors for dehumidified air and regeneration air fans
• Regeneration air temperature sensor
• Thermorelay for overheating protection of the electric heater
• Phase control relay
• Smooth adjustment of the electric heater power

Additional Connection Options

• Connection outputs for controlling regeneration air damper actuators (used to shut off the air duct when the dehumidifier stops working)
• Fire signal cable connection and forced heating element purging when the unit is turned off
• Modbus TCP dispatching system connection
• Remote control panel connection
• Remote work station (RWS) connection via the internet
• Manual or automatic operation mode selection
• Access levels for 3 categories of users (Guest, Operator, Service).

Optional Equipment:

• Stainless steel housing (AISI304)
• Air dampers with actuators (used to block outdoor air intake when the dehumidifier is not in operation)
• Fresh air mixing chamber with air dampers and actuators
• Additional G4 pre-filter section
• F7 air filter set
• Additional backup F5 air filters
• Option to connect mixing chamber damper actuators (without supplying the mixing chamber)
• Channel water/glycol cooler with a stainless steel drip catcher and trap
• Channel refrigerant cooler with a stainless steel drip catcher and trap
• Channel water/glycol calorifier
• Channel silencer
• Automation system adaptation for integrating the dehumidifier into the air duct system and operating in tandem with the supply and exhaust ventilation system
• Sensors for supply and return fluid temperature
• Capillary thermostat for frost protection of the calorifier
• Remote access and control of the dehumidifier via the internet
• Remote temperature and humidity sensor
• CO2 sensor
• Backup set of electric heaters
• Backup adsorption rotor for the dehumidifier.

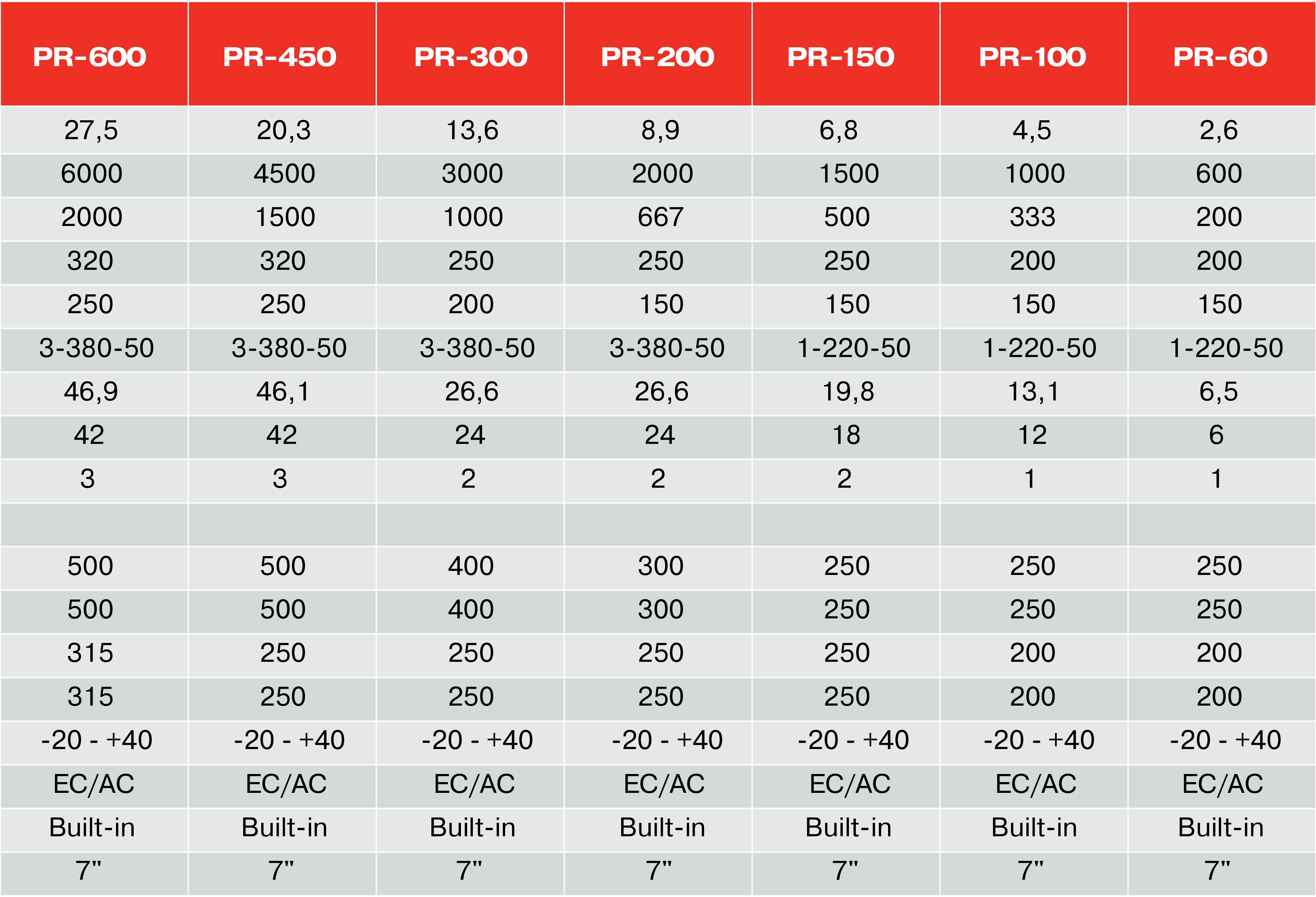

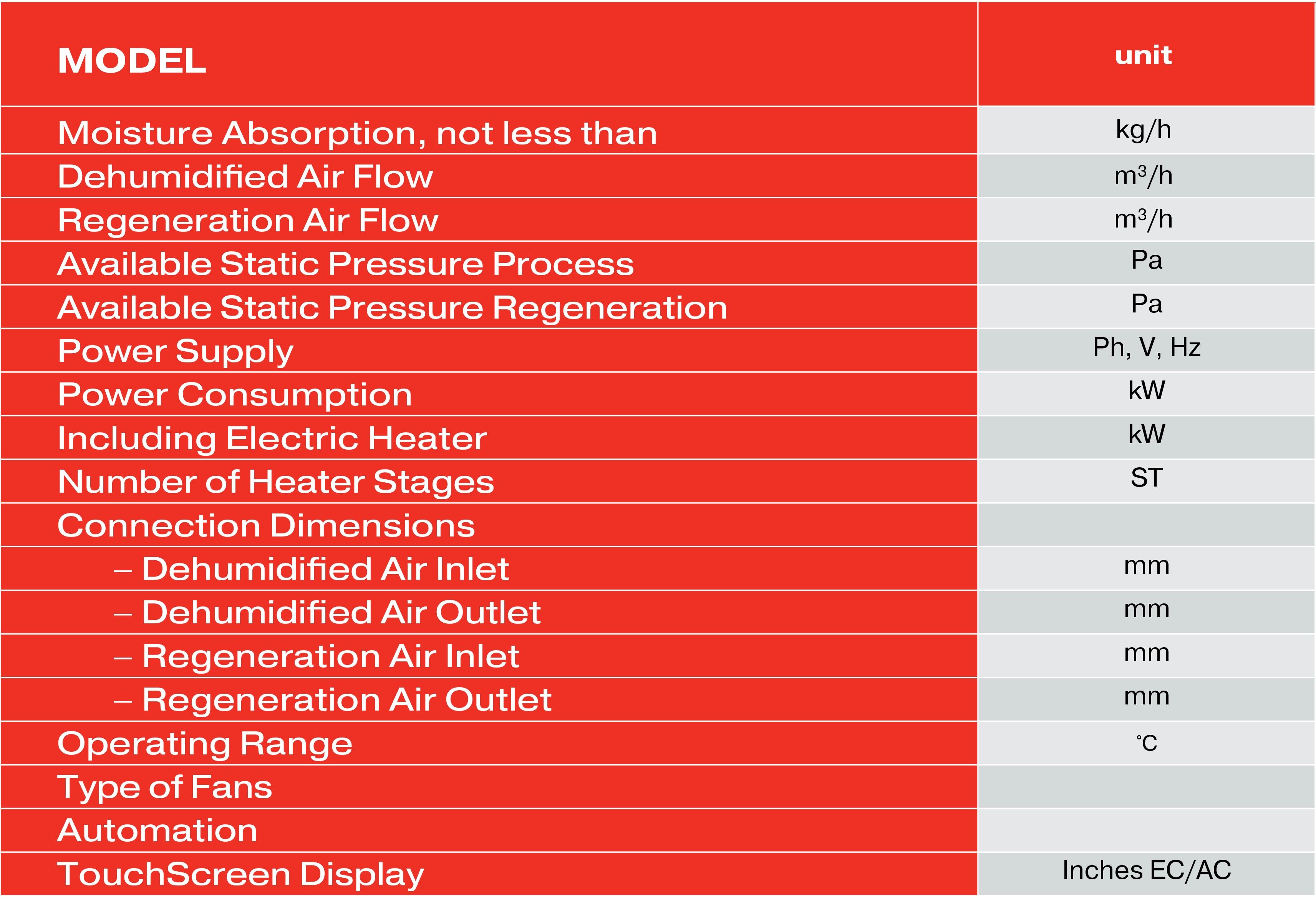

Technical Specifications of DesCool PR Adsorption Dehumidifiers

The DesCool PR series dehumidifiers are available in 7 sizes, with an air flow range from 600 to 6000 m³/h. Each dehumidifier is equipped with an adsorption rotor that has a high moisture absorption capacity.
